Description
Introduction
Yamaha Drive2 represents the gold standard in golf cart engineering, combining Yamaha’s legendary reliability with modern features that appeal to both recreational and commercial users. As the successor to Yamaha’s highly successful Drive series, the Drive2 builds upon decades of innovation to deliver a vehicle that excels on golf courses, in residential communities, and across commercial applications.
Design Philosophy and Construction Quality
Exterior Design Evolution
The 2022 Drive2 showcases Yamaha’s refined design language that balances traditional golf cart aesthetics with modern utility vehicle functionality:
Sleek front fascia with integrated Yamaha branding
Redesigned rear bodywork for improved cargo access
Durable polyethylene body panels with UV stabilization
Eight factory color options including two-tone combinations
Automotive-style lighting with optional LED upgrades
Chassis Engineering
Yamaha’s Advanced Chassis Design provides exceptional rigidity while minimizing weight:
High-strength steel frame with box-section construction
Robust welded crossmembers for torsional stiffness
Galvanized components in critical corrosion areas
Optimized weight distribution (52% rear / 48% front)
Ground clearance: 5.5 inches (7.5″ with lift kit)
Dimensional Specifications
Overall length: 93.5 inches
Width: 48 inches (mirror to mirror)
Height: 71 inches (with standard roof)
Wheelbase: 69.5 inches
Curb weight: 624 lbs (gas), 658 lbs (electric)
Payload capacity: 1,058 lbs
Powertrain Options and Performance
Gasoline Engine Specifications
The Drive2 G model features Yamaha’s proven gasoline powerplant:
Engine type: 4-stroke, single-cylinder OHV
Displacement: 357cc (GN4 model)
Bore x stroke: 88mm x 66mm
Compression ratio: 8.3:1
Fuel system: Mikuni carburetor (EFI optional)
Cooling: Forced air with temperature monitoring
Fuel capacity: 6.3 gallons
Oil capacity: 1.3 quarts
Electric Motor Specifications
The Drive2 PTV (Personal Transportation Vehicle) electric version offers:
Motor type: 48V AC induction
Controller: 300A solid-state with regen braking
Standard batteries: (4) 12V flooded lead-acid
Optional lithium: 48V 105Ah lithium-ion pack
Charger: 650W onboard (8-10 hour charge time)
Suspension and Ride Dynamics
Front Suspension System
Independent double A-arm design
Coil-over shock absorbers with 4″ travel
Anti-roll bar reduces body lean
Camber adjustment for alignment tuning
Rear Suspension Configuration
Semi-independent trailing arms
Dual-stage leaf springs with helper springs
Gas-charged shocks with position-sensitive damping
5″ wheel travel for rough terrain absorption
Braking Performance
Front brakes: Hydraulic drum (9″ diameter)
Rear brakes: Mechanical expanding drum
Parking brake: Rear wheel lock mechanism
Stopping distance: 17 feet from 15 mph

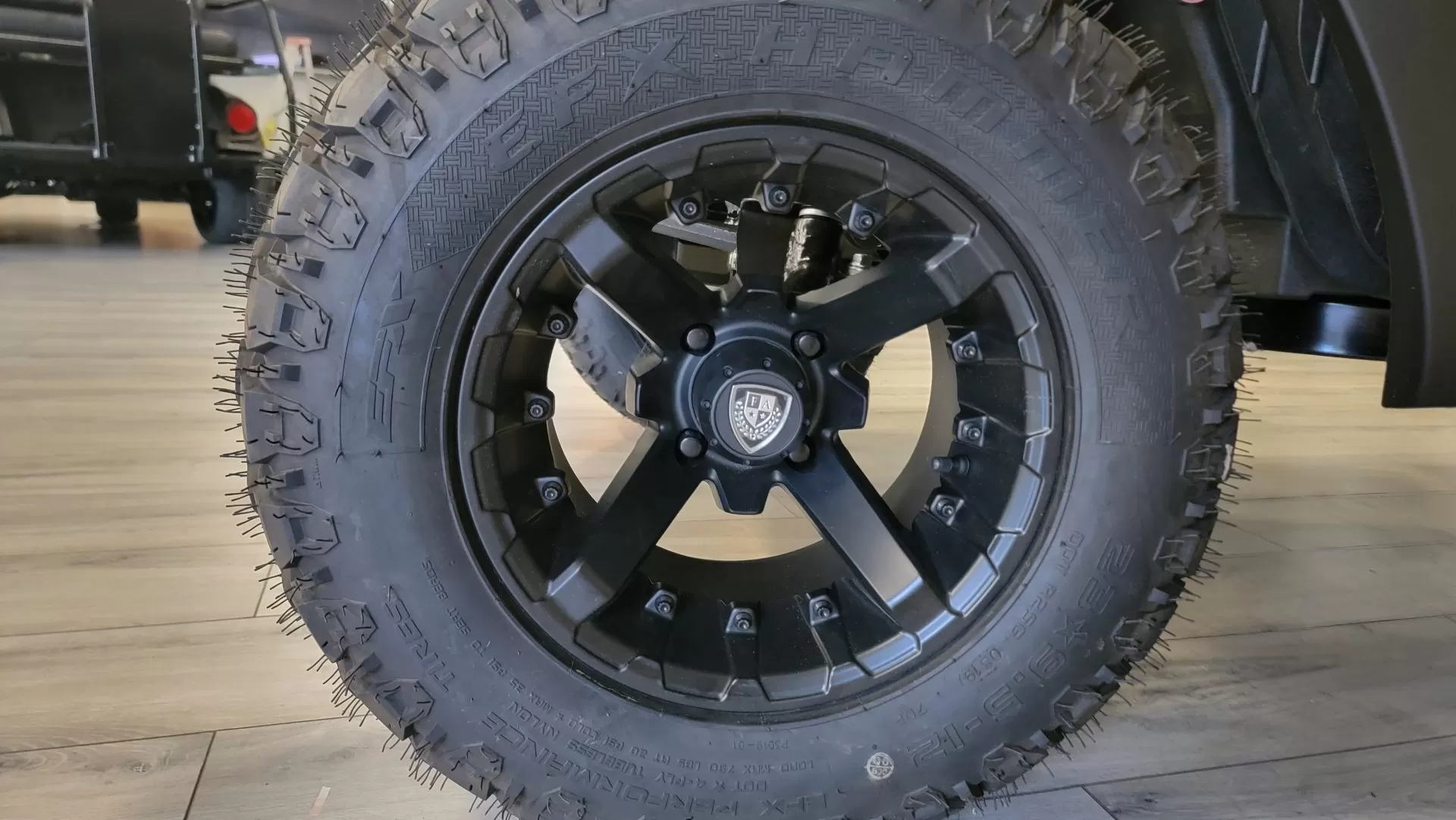

Wheel and Tire Options
Standard setup: 18×8.5-8 street tires
Upgrade options:
20×10-10 all-terrain tires
12″ aluminum wheels
Run-flat foam inserts
Interior Comfort and Ergonomics
Seating Design
Bench seat configuration: 42″ wide
Bucket seat option: With armrests
Seat material: Marine-grade vinyl
Legroom: 34″ (driver), 32″ (passenger)
Backrest height: 21″ for lumbar support

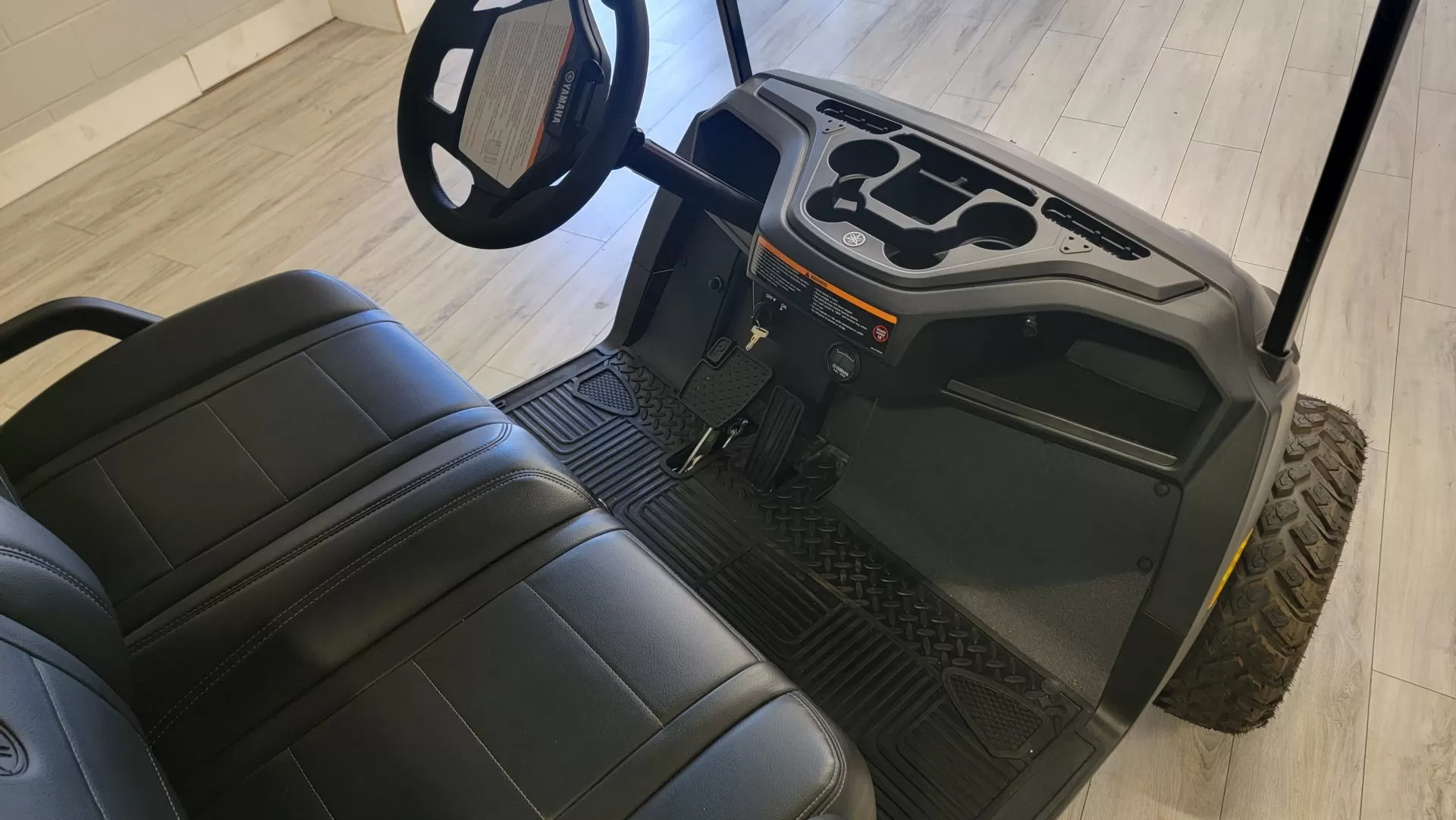

Control Layout
Steering wheel: 14″ diameter, tilt adjustment
Pedal arrangement: Automotive-style
Dash controls:
Key switch with removable key
Forward/reverse selector
Speed mode switch
Headlight controls
Storage Solutions
Under-seat storage: 1.8 cu.ft capacity
Dash compartment: Lockable glovebox
Optional rear cargo bed: 300 lb capacity
Aftermarket accessory mounts
Technology and Features
Standard Equipment
Instrument panel:
Battery charge indicator (electric)
Fuel gauge (gas)
Speedometer
Hour meter
Lighting package:
Halogen headlights
LED taillights
Brake lights
Turn signals
Available Upgrades
Yamaha Connect telematics:
GPS tracking
Geofencing
Theft recovery
Premium audio system:
Bluetooth connectivity
USB charging ports
Waterproof speakers
Safety package:
Rearview camera
Seat belts
Horn
Customization Potential
Factory Accessories : yamaha drive2
Yamaha Lift Kit: 3″, 5″, or 6″ options
Enclosure packages:
Half windshield
Full weather enclosure
Cargo solutions:
Rear utility bed
Overhead racks
Tool mounting systems
Popular Aftermarket Upgrades
Performance enhancements:
High-flow air filters
Performance clutches
Speed code reprogramming
Comfort additions:
Heated seats
Premium upholstery
Sound deadening
Safety and Reliability
Structural Safety : yamaha drive2
Energy-absorbing steering column
Reinforced passenger compartment
Impact-resistant front bumper
Operational Safety
Speed-sensitive power steering (optional)
Governor-controlled top speed
Automatic parking brake
Durability Factors
Engine lifespan: 3,500+ hours (gas)
Battery life: 4-5 years (lead-acid)
Frame warranty: 5 years against corrosion
Maintenance Requirements
Gas Model Maintenance : yamaha drive2
Oil changes: Every 100 hours
Air filter: Every 200 hours
Spark plug: Every 300 hours
Belt inspection: Every 500 hours
Electric Model Maintenance
Battery watering: Monthly (lead-acid)
Terminal cleaning: Quarterly
Brake adjustment: Annually
Battery replacement: 4-5 years
Competitive Analysis
Vs. E-Z-GO TXT
Drive2 advantages: Better suspension, more power
TXT advantages: Lower price, simpler design
Vs. Club Car Onward
Drive2 advantages: More torque, better off-road
Onward advantages: More refined, quieter
Vs. Star EV Sport
Drive2 advantages: Proven reliability, dealer network
Sport advantages: Standard lithium batteries
Ownership Experience
Customer Satisfaction Highlights
“Unmatched reliability” from long-term owners
“Perfect golf course machine” according to superintendents
“Easy to customize” for personalization
Common Complaints
Carburetor issues in gas models (ethanol sensitivity)
Basic tech features compared to premium rivals
Limited lithium option availability
Conclusion: Yamaha Drive2
The 2022 Yamaha Drive2 continues Yamaha’s tradition of building exceptionally capable, durable vehicles that satisfy both recreational and commercial users. While not the most technologically advanced option available.
